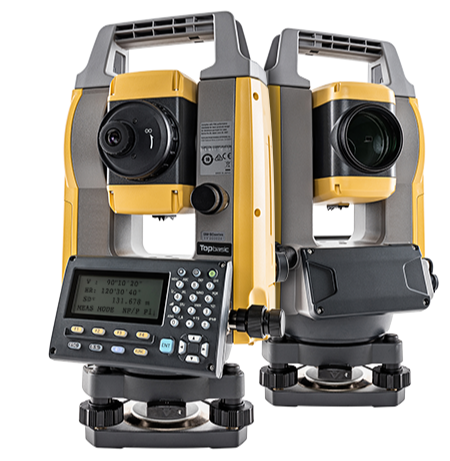

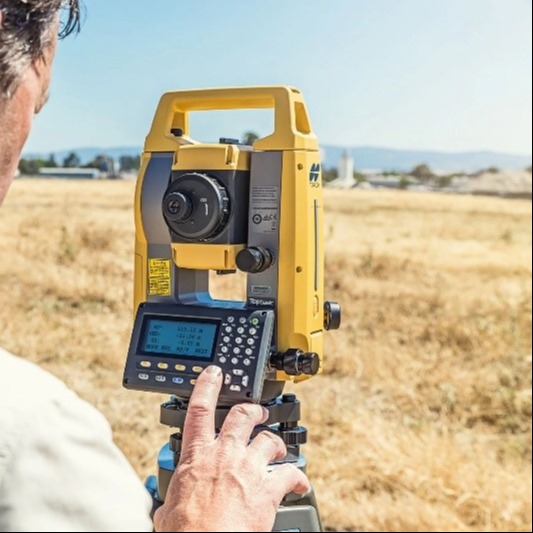

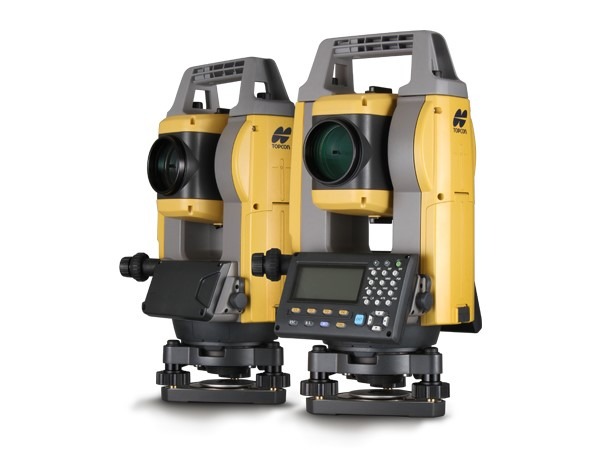

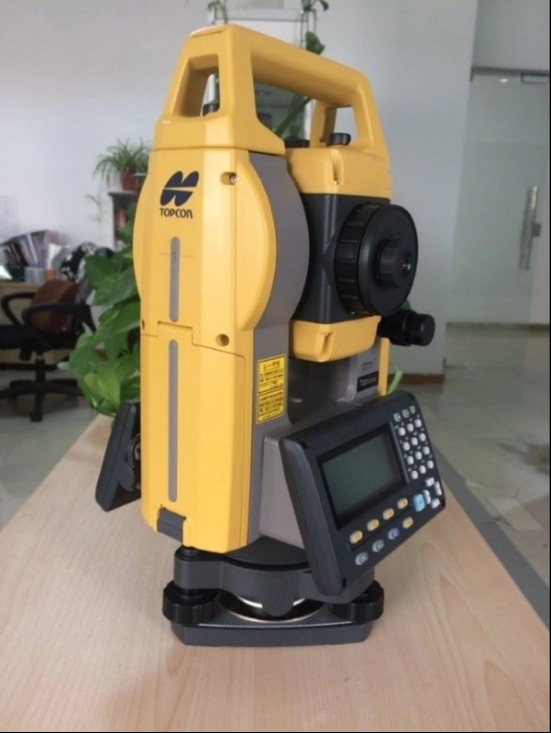

Topcon GM-50 Series total stations – advanced design with superior technology The GM-50 Series was designed from the ground up to deliver the very latest technological advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.

Featuring a class leading EDM unit, the GM-50 is able to measure up to 4,000 m at 1.5 mm + 2 ppm accuracy, to standard prisms, and can measure in reflectorless mode up to 500 m at an incredible 2 mm + 2 ppm accuracy. Measurements are captured faster than ever, and with a beam width of 13 mm (at 30 m), the bright red laser dot pinpoints features with ease.

Versatile, Economical Solution The GM-50 Series is smaller, lighter, with increased storage capacity. Offered at an even more cost-efficient option than previous models, it provides your customers the perfect tool for entry-level site layout and surveying.

Bluetooth® Communication With integrated Bluetooth® capability and internal antenna, the sleek design enables you to deliver measurements cable-free to your data controller.

• 500 m non-prism range

• Side mount extra long-life battery

• Optional optical or laser plummet

• Electronic leveling system

• Dual (GM-52 model only), graphic, backlit LCD display and keyboard

• Exclusive “STAR-KEY” functionality

• Tangent lock – securely holds your angle in place

• Easy access, environmentally protected USB 2.0 slot

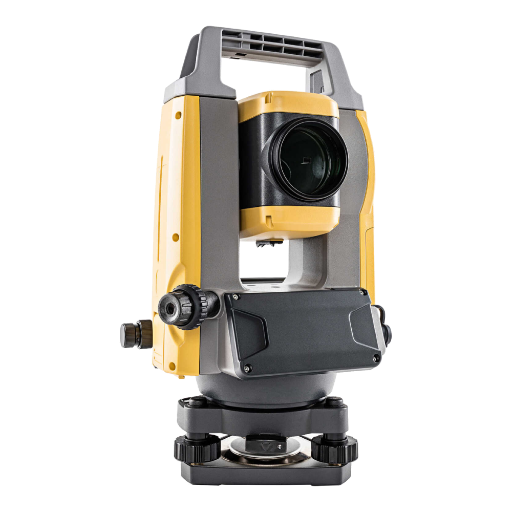

Topcon GM-100 total stations – advanced design with superior technology The GM-100 series delivers the latest technological advantages, all in a small, sleek design – you’ll appreciate the benefits from the very first measurement.

Featuring a best-in-class EDM unit, the GM-100 can measure up to 6,000 m 1.5 mm + 2 ppm to standard prisms, and up to 1,000 m at an incredible 2 mm + 2 ppm accuracy in reflectorless mode.

Capture measurements faster than ever, and with a beam width of 13 mm (over 30 m), the bright red laser dot pinpoints features with ease.

Rugged and Powerful The GM-100’s rugged IP66 rated waterproof and dustproof magnesium-alloy housing encases this exceptional EDM, advanced angle encoder system, and a lithium ion battery that provides a 28-hour power supply to help complete your projects on schedule.

• 1,000 m non-prism range

• Unique IACS angle encoder system (1” and 2”)

• Highly visible green and red LED guidelights

• Quick and easy-to-use trigger button

• Laser plummet

• Easy access, environmentally protected USB 2.0 slot

• Tangent lock – securely holds your angle in place

• Dual, graphic, backlit LCD display and keyboard (second display is optional)

• Electronic leveling system

• Exclusive “STAR-KEY” functionality

• Side mount extra long-life battery

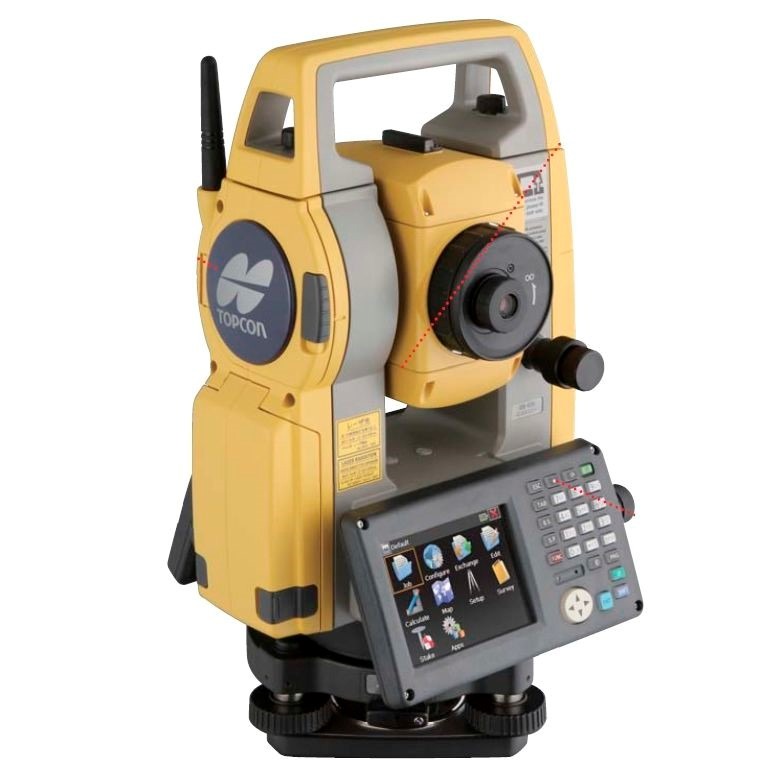

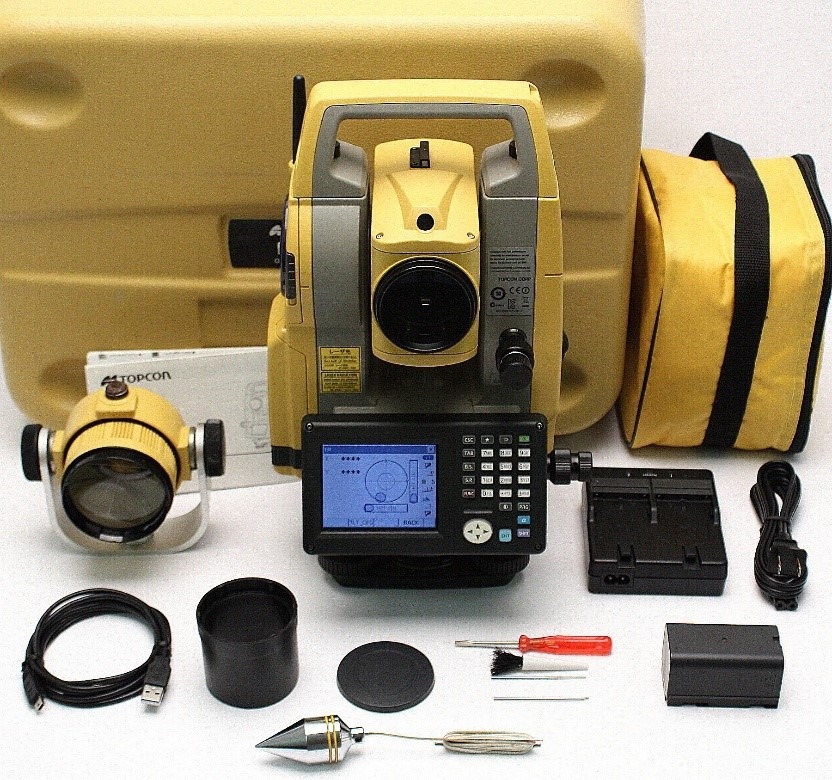

OS Series total stations – advanced design with superior technology The OS is a professional grade compact total station. This advanced design provides an on-board data collection interface, exclusive LongLink™ communication, and an incredibly powerful EDM.

Work directly on the bright, color touchscreen, or with the alpha-numeric keyboard, to achieve higher levels of production with MAGNET® Field on-board software. The OS total station can be used on a wide variety of applications, from building layout to earthwork volumes, and land surveying.

On-board Windows touchscreen Running on-board software on the Windows® touchscreen computer increases productivity. The screen is large and bright, so the user can see more software functions and intuitively interact with the screen where needed. Software applications become easier to use and there is no need to hold a field controller in one hand while turning the instrument with the other. The OS has precise tangent locks to keep the angle positions accurate even with touchscreen and keyboard interaction.

• 300 m range LongLink functionality

• Easy access, environmentally protected USB 2.0 slot (Host + Slave)

• 1,000 m non-prism range

• Unique IACS angle encoder system (1” and 2”)

• Electronic leveling system

• Exclusive “STAR-KEY” functionality

• Side-mount, extra long-life battery

• Color LCD touchscreen

• Tangent lock – Securely holds your angle in place

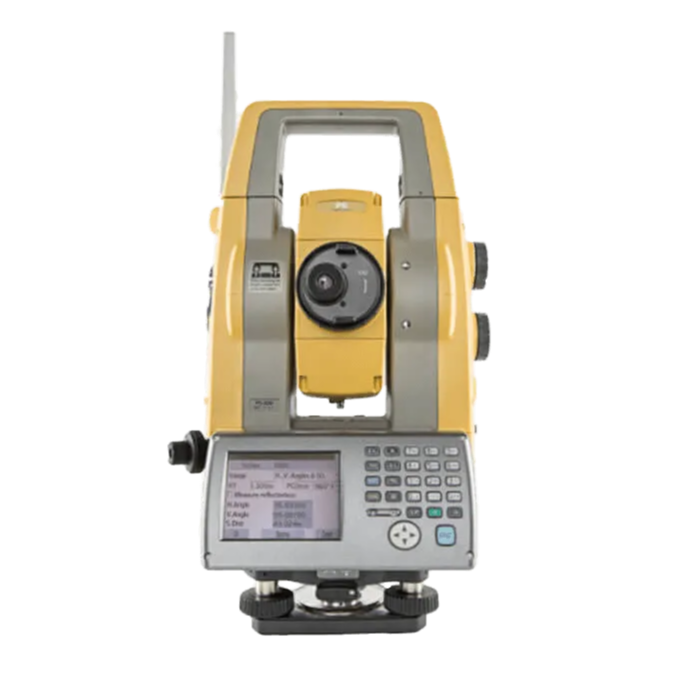

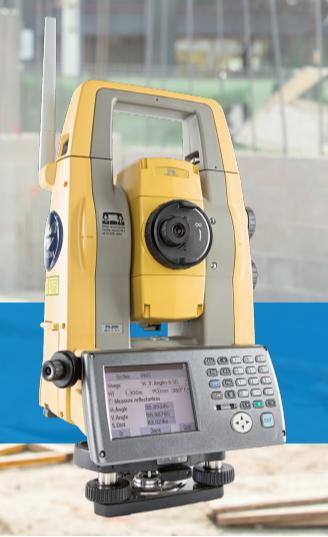

The PS-200 is a professional grade robotic total station, designed for toughest Machine Control use cases. exclusive LongLink™ communication, and an incredibly powerful EDM.

LPS-Setup preinstalled With LPS-Setup you can get your PS-200 up and running in no time. Load your control points via the integrated USB interface and choose from various stationing options. Your robotic total station is ready for use in just a few minutes and controls your construction machine reliably - in any weather and even in difficult environments.

PowerTrac™ tracking technology The revolutionary PowerTrac™ engine dramatically increases power for prism tracking. Employing entirely new optics, laser system, and further advanced algorithms, PowerTrac™ provides the unsurpassed ability to keep tracking a moving prism even under the toughest environmental conditions.

• 600 m range LongLink™ functionality

• Fast and powerful EDM 1,000 m non-prism range

• Advanced angle accuracy

• Rugged waterproof/ dustproof IP65 design

• Easy access USB Type A/B flash drive port

• Color TFT QVGA display

• Built-in Bluetooth® technology

• Ultra-fast servo motor technology

• PowerTrac™ tracking technology

• Backlit 25 key keyboard and directional arrow key

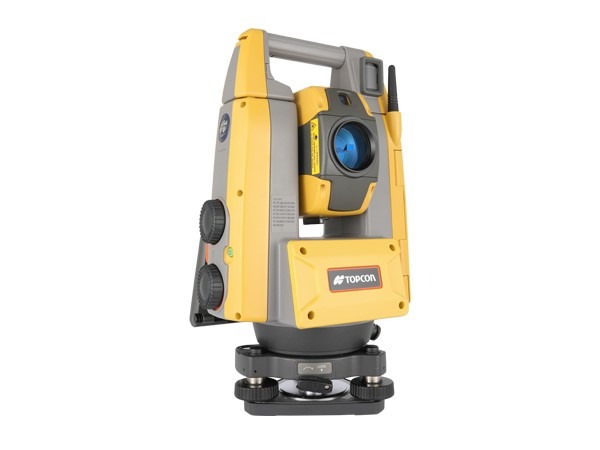

The LN-160 makes construction layout easier than ever, combining cutting-edge technology with user-friendly design. Powered by Topcon’s trusted robotic total station tech, it delivers the precision you need for layout tasks of all kinds – without overcomplicating things.

With a simple press of a button, the LN-160 self-levels and gets to work. Pair it with a rugged tablet or handheld controller, and you can access point layouts or CAD drawings right on-site. Just select your design point or line, and the LN-160 guides you exactly where you need to go, saving you time and effort. Designed for one-person operation, its prism-lock feature keeps you on track, while the new external battery connector ensures you have the power to tackle even the longest jobs. Less downtime, more results.

Whether you’re a seasoned pro or just looking for a reliable layout solution, the LN-160 delivers the accuracy, efficiency, and simplicity that today’s job sites demand.

• Interference-free communications

• Easy-grip carrying handle

• High-visibility guide lights

• Completely sealed waterproof and dustproof housing

• External power port

• LED indicators and bright laser plummet

• Self-leveling base

• Easy, one-button setup
